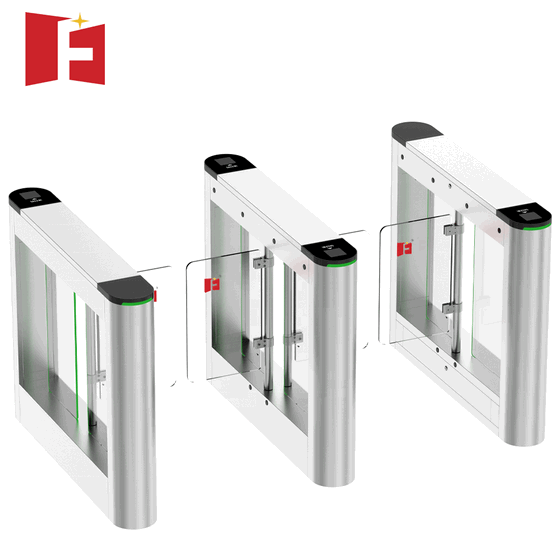

Secure outdoor perimeters and streamline pedestrian traffic with our IP55 weatherproof optical swing turnstile gate. Featuring an advanced face recognition camera and an integrated RFID access control system, it combines robust weather-resistant construction, dual biometric verification, and precise tailgating prevention to deliver reliable, high-performance security worldwide.
| Protection Level | IP55 (Outdoor Ready) | Barrier Open/Close Time | 0.2 s (High Speed) |
| Barrier Motor | Baroxon Brushless Motor | Access Control Type | ESD System, Face Recognition, QR Code, IC Card, Fingerprint, RFID Card |
| Turnstile Function | Anti-Pinch, Anti-Tailgating, Collision Avoidance, Counting Function | Operation Direction | 2-Way (Bidirectional) |
| Communication Interface | RS485 | Material | SUS 304 Stainless Steel |
| Brand Name | Baroxon | Model Number | Ba-1116 |
| Power Supply | 60W (Low Consumption) | Size | L1500*W160*H980mm (Customizable) |
| Channel Frame | SUS 304 (1.3mm thickness) | Pass Speed | 30-45 persons/minute |
| Door Wing Material | 10mm Tempered Glass / Acrylic | Infrared Logarithm | 6 Pairs (Outdoor Support) |
| MCBF | 5 Million Cycles | Operating Temperature | -25℃~60℃ |
◆ Premium SUS304 Stainless Steel: Corrosion-resistant and wear-resistant material with industry-standard thickness, perfectly suited for the high-humidity tropical climate of Singapore.
◆ Triple Anti-Pinch Technology: Combines cutting-edge Infrared Anti-Clip, Mechanical Anti-Clip physical protection, and Current Detection Collision Avoidance to ensure absolute safety for users passing through the gate.
◆ Advanced Logical Control: Supported by a multi-point infrared sensor matrix to block illegal entry attempts such as tailgating and counter-flow intrusion.
◆ Intelligent Voice Broadcast: Interactive voice module to enhance mobility efficiency and orderliness in pedestrian traffic flow.
◆ Tri-Color LED Indicator: Elegant three-color LED status lights (Blue, Green, Red) serving as visual guides for access authorization status.
◆ Fire Escape Integration: Direct interconnectivity with building emergency systems via a fire escape interface to open gates automatically during evacuation.
◆ Customizable Pass Speed: Flexible configuration for opening/closing response times to optimize operations in public areas like MRT stations, airports, or factory checkpoints.
