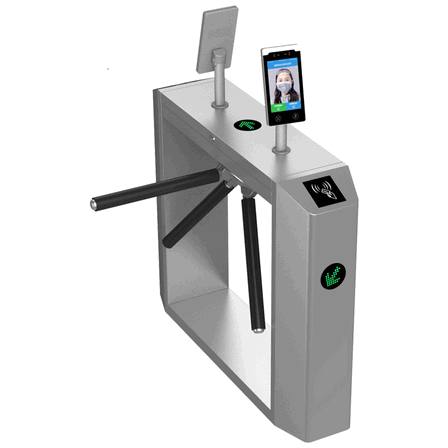

This tripod mechanism gate is built to provide a stable and accurate foundation for automated attendance systems. By using a heavy-duty stainless steel tripod mechanism, it ensures that every person passing through is correctly identified by the biometric scanner. The system is perfect for factory or industrial workforces, where accurate time-tracking is essential for payroll and safety compliance. The gate's rotating arms provide an intuitive, high-speed entrance path for employees, while the high-precision biometric sensor ensures that each entry is logged accurately. It is a reliable, professional, and durable tool for managers who need to balance site security with efficient human resource management.
In short, the Stainless Steel Tripod Mechanism Gate with Biometric Attendance Sensing Integration is a factory-direct pedestrian access control...
Premium Pedestrian Access Control. Baroxon Ba-117AB series is the most reliable Gate Putar solution for gyms, construction sites, and office building lobbies. Engineered with high-quality SUS304 Stainless Steel, this tripod turnstile ensures durability for high-traffic environments across Ciudad de Mexico, Guadalajara, and Cancún. Integrated with RFID Card, Face Recognition, and Machine Attendance for a complete security ecosystem.
| Protection Level | IP54 | Barrier Open/Close Time | 0.2 s |
| Barrier Motor | Brushless Motor (High Endurance) | Access Control Type | RFID Card. QR Code. Fingerprint. Face Recognition. IC Card |
| Turnstile Function | Anti-Tailgating (Anti-Buntut). Anti-Pinch | Operation Direction | 1-Way (Adjustable to 2-Way) |
| Communication Interface | RS485 | Material | Stainless Steel SUS304 |
| Brand Name | Baroxon | Model Number | Ba-117AB |
| Dimensions | L1200*W280*H980mm | Power Supply | AC220V±10%. 50Hz |
1. Material characteristics: The box body is made of high-quality SUS 304 stainless steel material, which is rust resistant, durable, and structurally stable and sturdy.
2. Hydraulic Shock Absorber: The movement has an automatically adjustable hydraulic shock absorber, which can significantly reduce the noise of the rotating rod. The brake rod automatically decelerates and returns to its original position.
3. LED Indicator: The roof light has a clear direction indication function (Green for allowed, Red for prohibited). Body side lights come as standard for Mexico modern building aesthetics.
4. Anti-Tailgating & Anti-Collision: Prevents unauthorized entry (Anti-Buntut). When no signal is received, the brake rod automatically locks for high security.
5. Emergency Pass: pole dropping function for fire exit safety during power-off situations (Pole drops automatically).
| Component | Description / Value |
| Top Cover Material | 1.2mm SUS304 Stainless Steel |
| Body Material | 1.0mm SUS304 Stainless Steel |
| Tripod Arm Material | 38mm diameter stainless steel round tube |
| Passage Width | 550mm (Arm length 500mm) |
| Mechanism Type | Semi-automatic tripod turnstile mechanism |
| Passing Speed | ≤35 people/minute |
| Power Consumption | ≤ 75W (Standby < 10W) |
| Working Environment | Indoor / Outdoor (In & Luar Ruangan) |
| Q1: Is this turnstile suitable for outdoor construction sites in Mexico? |
| A: Yes, our Ba-117AB uses high-grade SUS304 Stainless Steel and has an IP54 protection level, making it durable for outdoor environments (suggested with a canopy/atap). |
| Q2: Can I integrate it with my current Face Recognition device? |
| A: Absolutely. Baroxon supports various Access Control inputs including RFID, Face Recognition, and IC Card. We provide the relay signal interface for easy integration. |
| Q3: What happens during a power failure/fire emergency? |
| A: For safety compliance in Mexico (Fire Safety), the arm will automatically drop (Auto-Drop Pole) to allow free passage for emergency evacuation. |
| Packaging Details | Standard carton box. Wooden case (Peti Kayu) recommended for extra protection. |
| Package Size | 1270mm*350mm*1050mm |
| Gross Weight | 55KG |
The operator supports adjustable travel profiles from 0.6s / 0.9s for high-traffic lanes up to 1.5s–6s for long or heavy arms, configurable on site.
Straight, folding (90°/180° articulated) and fence arms from 1 m to 6 m, selected according to lane width, wind load and clearance.
Yes. Power input accepts AC 110–240V 50/60Hz plus DC 24V brushless variants, so it matches Mexican electrical standards (127V/60Hz).
Yes. The control board supports ANPR/LPR camera terminals, RFID/UHF long-range readers, loop detectors, QR codes and third-party parking management software through dry contacts, Wiegand or network interfaces.
Units include manual clutch release and automatic arm-lift failsafe. Optional battery or UPS backup keeps the gate operating in unattended car parks.
Rated for 3–10 million MCBF cycles with MTTR under 30 minutes thanks to the modular design. Standard 1-year warranty, lifetime technical support, ISO 9001 / ISO 14001 / ISO 45001 and CE certified.
The MOQ is 1 unit for sample orders, with volume discounts from 10 units. Mixed container orders combining barriers, turnstiles and sensors are welcome.
Factory-direct prices for this category range from USD 100 to USD 5,000 depending on model, arm length, motor type and access control configuration. Send your site details on WhatsApp for a quotation within 24 hours.
Stock units ship in 3–7 days; customized production takes 15–25 days. Sea freight to Mexican ports (Manzanillo, Lázaro Cárdenas, Veracruz) usually takes 25–35 days; air freight is available for urgent projects.
