Maximize vehicle throughput and streamline traffic flow with our high-speed automatic boom barrier gate. Featuring rapid opening speeds, heavy-duty motor technology, and intelligent fast-access control, it delivers seamless operation, high-frequency durability, and reliable vehicle management for toll plazas, commercial properties, and transport hubs worldwide.
En resumen, la High-Speed Automatic Boom Barrier Gate for Rapid Traffic Management - Intelligent Fast-Access Control System es un barrera de alta...
| Credential Type | RFID Card, Code, Key, Smartphone, Others | Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, Audio, Time Attendance, Others |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Sales Unit | Single item |
Intuitive Operator Interface: Utilizing advanced integrated controller boards for rapid access configuration and efficient traffic management across high-mobility commercial complexes in México.
Modular Architecture: Internal mechanical structure engineered for swift installation, minimizing field setup costs and simplifying routine maintenance for local facility supervisors.
High-Stability Powertrain: Integrating precision DC brushless motor technology and digital frequency conversion to guarantee precise positioning, smooth movement, and silent operation.
Intelligent Security Defense System: Equipped with mechanical anti-collision detection, real-time auto-rebound features, and manual arm release for emergency evacuation procedures.
Extensive System Compatibility: Seamless integration with RFID card readers, automated security barrier gates in México, pedestrian control turnstiles, vehicle induction loop detectors, and smart building management systems.
High-Traffic Application: Ideal solutions for commercial shopping malls, Grade-A office towers, luxury hotels, residential condominiums, logistics distribution centers, industrial parks, and high-speed vehicle access control systems in México.
Watch our Baroxon electric barrier gate cycle tests and reliability demonstrations deployed in field environments:
As an access control engineering specialist, Baroxon offers custom manufacturing solutions for perimeter security installations, carpark management, and vehicular facilities. Our catalog provides complete automated entry hardware specifically designed for professional contractors and security integrators.
Product Excellence: High-durability straight arm operators, anti-climb security fences, articulating folding arms for restricted headroom, and ANPR/LPR communication protocol support.
Global Reach: Serving traffic management requirements across México, Latinoamérica, and over 200 international markets worldwide.
Comprehensive Technical Support: Property security evaluation, multi-lane CAD layout designs, system calibration training, and professional technical consultancy.
Ergonomic Design: Robust chassis frames facilitating rapid on-site installation, optimal cable routing, and economical field servicing.
Patent Innovation: 100+ technology patents featuring advanced DC brushless motor drivers and secure microchip control architectures.
Experienced R&D: Engineering team with 20 years of technical background in the automated physical security and access control industry.
Premium SLA Services: Instant digital response, professional technical diagnostics, and reliable maintenance support for local project partners.
Q1: What are the opening and closing speed options for this barrier system?
A: Standard operating speeds range from 0.6 seconds to 6 seconds. For high-density vehicle lanes, we recommend our specialized high-speed configurations.
Q2: Does the control board support local electrical standards and backup power?
A: Yes, units accept standard AC inputs and support auxiliary DC batteries or renewable solar setups for off-grid deployment.
Q3: What is the maximum reach of the aluminum boom arm?
A: We provide high-strength aluminum arms ranging from 1 meter up to 6 meters, fully customizable to project dimensions.
Q4: Can these systems integrate easily with ANPR cameras or RFID readers?
A: Absolutely. Baroxon controllers utilize open standard protocols like Wiegand, RS485, and TCP/IP for seamless third-party software integration.
Q5: How does the housing withstand harsh tropical weather conditions?
A: Heavy-duty galvanized steel housing combined with an IP66 protection rating ensures superior defense against heavy rainfall, humidity, and salt corrosion.
Q6: What safety features are built into the unit to prevent accidents?
A: The system includes electronic load-sensing auto-reversal, inductive loop detector compatibility, and a secure manual key-release mechanism.
Q7: What is the expected service lifespan of the DC brushless motor?
A: Designed with an MCBF rating of up to 10 million cycles, our motors offer long-term operational reliability with minimal upkeep.
Q8: Are folding boom arms available for multi-storey carparks with low headroom?
A: Yes, we offer 90-degree and 180-degree folding arm configurations designed specifically for basement parking environments.
Reach out to our engineering support team for price quotations, distribution inquiries, or custom OEM manufacturing:
B2B Email: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automatic barrier gate México | Commercial carpark gate systems | High-speed toll barrier gate | Electric parking boom gate | Vehicle access control system | Heavy duty boom barrier | Automated smart parking solution | Vehicle loop detector | Security access gate supplier | RFID parking barrier system | ANPR license plate recognition | IP66 barrier gate | Industrial access control gate | Automatic parking barrier Reforma | Carpark security solutions México | Baroxon barrier gate México | Gate automation system | Automatic supermarket gate | Carpark system integration | Shandong parking barrier manufacturer | Traffic control device México | Corrosion-resistant barrier gate | Office building access control | Residential barrier gate | Carpark management hardware | Automatic entrance gate system | Highway security barrier | High-rise access control | Automatic gate operator | Smart building security | Commercial property security | Multi-storey carpark gate | Entrance access automation | Secure perimeter access
El operador admite perfiles de recorrido ajustables desde 0.6s / 0.9s en carriles de alto tráfico hasta 1.5s–6s para brazos largos o pesados, configurables en sitio.

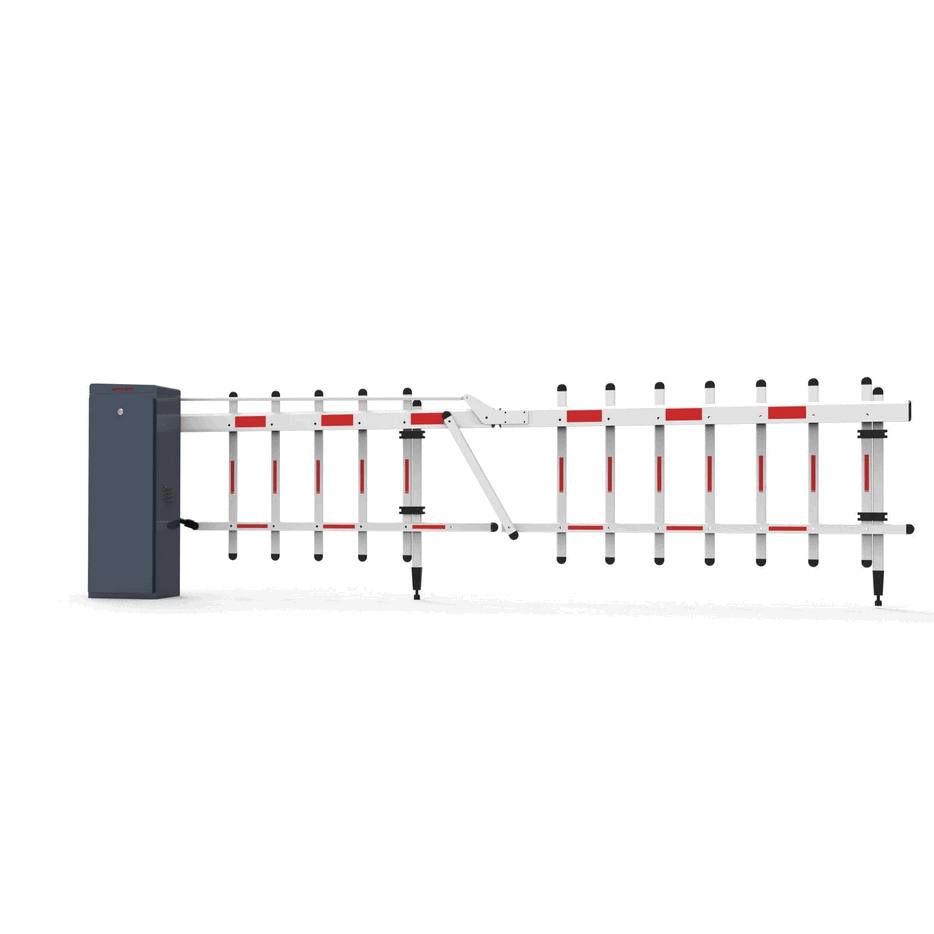

Brazos rectos, plegables (articulados 90°/180°) y de rejilla de 1 a 6 metros, seleccionados según el ancho del carril, la carga de viento y el claro disponible.
Sí. La entrada acepta AC 110–240V 50/60Hz y también versiones DC 24V sin escobillas, por lo que se adapta al estándar eléctrico mexicano (127V/60Hz).
Sí. La tarjeta de control soporta terminales de cámara ANPR/LPR, lectores RFID/UHF de largo alcance, espiras detectoras, códigos QR y software de estacionamiento de terceros mediante contactos secos, Wiegand o red.
Los equipos incluyen desembrague manual y elevación automática de seguridad. Con batería o UPS opcional, la barrera sigue operando en estacionamientos desatendidos.
Diseñado para 3–10 millones de ciclos (MCBF) con MTTR menor a 30 minutos gracias al diseño modular. Garantía estándar de 1 año, soporte técnico de por vida, certificaciones ISO 9001 / ISO 14001 / ISO 45001 y CE.
El MOQ es de 1 unidad para pedidos de muestra, con descuentos por volumen desde 10 unidades. Aceptamos contenedores mixtos con barreras, torniquetes y sensores.
Los precios de fábrica para esta categoría van de USD 100 a USD 5,000 según modelo, longitud de brazo, tipo de motor y configuración de control de acceso. Envíe las características de su proyecto por WhatsApp y le cotizamos en menos de 24 horas.
Los equipos en stock se envían en 3–7 días; la producción personalizada toma 15–25 días. El flete marítimo a puertos mexicanos (Manzanillo, Lázaro Cárdenas, Veracruz) suele tomar 25–35 días; hay flete aéreo para proyectos urgentes.
