Secure corporate corridors and regulate employee entry with our high-speed optical speed gate turnstile featuring multi-factor authentication. Designed for high-frequency operations, it combines rapid-response glass panels, precision optical sensors, and advanced multi-credential verification, delivering seamless traffic flow and maximum protection worldwide.
En resumen, la High-Speed Optical Speed Gate Turnstile with Multi-Factor Authentication – Secure Pedestrian Passageway System for Corporate...

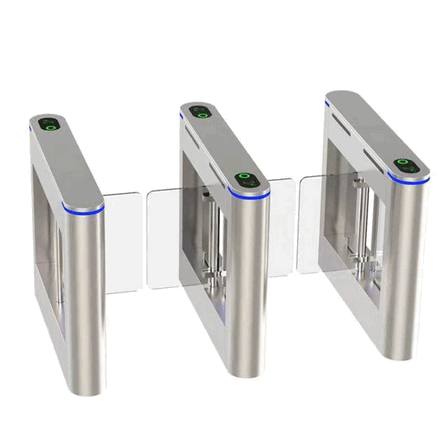

Premium Pedestrian Management Solution. The Baroxon Ba-YZS168 is a high-performance automatic swing gate system, specifically engineered to meet the stringent security standards of modern corporate offices, high-tech industrial plants, and public facilities. Built with robust 304 Stainless Steel and powered by a silent, high-endurance DC24V Brushless Motor, this unit guarantees a secure perimeter protection system for commercial hubs across México. This system fully supports seamless integration with biometric devices such as Face Recognition, Fingerprint scanners, and RFID Card reader modules for modern smart access control management.
| Protection Level | IP55 | Barrier Open/Close Time | 0.2 s - 2 s (Adjustable) |
| Barrier Motor | DC24V Brushless Motor (Heavy Duty) | Access Control Type | ESD System. Face Recognition. Fingerprint. IC Card. QR Code. RFID Card |
| Turnstile Function | Anti-Pinch. Anti-Tailgating. Collision Avoidance. Counting Function | Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | TCP/IP. RS-232. RS485 (Network Ready) | Material | Stainless Steel 304 |
| Brand Name | Baroxon | Model Number | Ba-YZS168 |
| Dimensions | 1200*200*980mm | Working Environment | Outdoor (Shade) -25 ~ 70 |
1. Swing Turnstile: Features a barrier gate leaf that swings open/close, highly customizable to be widened for wheelchair accessibility and heavy pedestrian traffic.

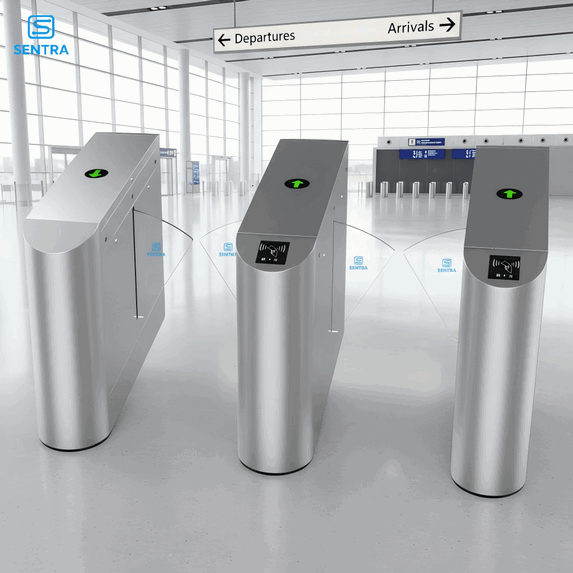

2. Wing Gate Turnstile: Provides a standard lane width of 550-600mm, commonly utilized in public transport hubs like MRT stations, railway terminals, and airport lobbies.
3. Full Height Turnstile: Standing at 2.2 meters, this offers the maximum security coefficient, ideal for outdoor industrial plants or critical national infrastructure protection.
| Component | Detailed Specification |
| Product Name | Swing Turnstile Gate (Automatic Barrier System) |
| Material | 304 Stainless Steel (Anti-Rust) |
| Motor Type | Brushless Motor / Servo Motor Option |
| Channel Width | 600mm--900mm (Widened for Wheelchair Access) |
| Warranty | 2 Years Factory Warranty |

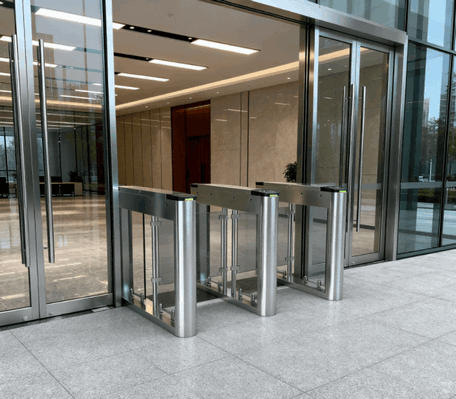

Corporate Offices: Installation of turnstile gates with proximity card readers and facial recognition for employee attendance and guest management.
Fitness Centers & Gyms: Members enter through face validation or RFID membership cards to prevent unauthorized entry to facilities.
Enterprise Canteens: Swing gate unit integrated with biometric scanners for meal entitlement tracking and staff authentication.
Residential Complexes: Full-height turnstiles installed at perimeters to significantly increase environment safety and site security.
 Card Reader Turnstile |  Swing Arm Barrier |  Wing Gate Turnstile |
 Biometric Turnstiles |  Full Height Security |  Tripod Turnstile Gate |
1. Who is the manufacturer of these security systems?
We are the professional manufacturer of Baroxon automatic turnstile systems, consistently delivering top-tier perimeter security solutions for the México market.
2. What types of turnstiles do you produce?
We offer a complete ecosystem including swing turnstiles, flap barriers, high-speed wing gates, and tripod turnstiles for industrial and corporate sites.
3. How are quotations calculated for projects?
Pricing depends on the device type, lane width, and specific access control modules integrated, such as face recognition or ESD testing systems.
| Selling Units | Single item | Package Size | 120X20X100 cm |
| Gross Weight | 35.000 kg | Packaging Type | Sturdy export standard carton/wooden case |
El operador admite perfiles de recorrido ajustables desde 0.6s / 0.9s en carriles de alto tráfico hasta 1.5s–6s para brazos largos o pesados, configurables en sitio.
Brazos rectos, plegables (articulados 90°/180°) y de rejilla de 1 a 6 metros, seleccionados según el ancho del carril, la carga de viento y el claro disponible.
Sí. La entrada acepta AC 110–240V 50/60Hz y también versiones DC 24V sin escobillas, por lo que se adapta al estándar eléctrico mexicano (127V/60Hz).
Sí. La tarjeta de control soporta terminales de cámara ANPR/LPR, lectores RFID/UHF de largo alcance, espiras detectoras, códigos QR y software de estacionamiento de terceros mediante contactos secos, Wiegand o red.
Los equipos incluyen desembrague manual y elevación automática de seguridad. Con batería o UPS opcional, la barrera sigue operando en estacionamientos desatendidos.
Diseñado para 3–10 millones de ciclos (MCBF) con MTTR menor a 30 minutos gracias al diseño modular. Garantía estándar de 1 año, soporte técnico de por vida, certificaciones ISO 9001 / ISO 14001 / ISO 45001 y CE.
El MOQ es de 1 unidad para pedidos de muestra, con descuentos por volumen desde 10 unidades. Aceptamos contenedores mixtos con barreras, torniquetes y sensores.
Los precios de fábrica para esta categoría van de USD 100 a USD 5,000 según modelo, longitud de brazo, tipo de motor y configuración de control de acceso. Envíe las características de su proyecto por WhatsApp y le cotizamos en menos de 24 horas.
Los equipos en stock se envían en 3–7 días; la producción personalizada toma 15–25 días. El flete marítimo a puertos mexicanos (Manzanillo, Lázaro Cárdenas, Veracruz) suele tomar 25–35 días; hay flete aéreo para proyectos urgentes.
