Optimize vehicle parking management and secure facility entry points with our intelligent automated boom barrier gate system. Designed for efficient traffic access control, it combines rapid-response motor operation, high-frequency durability, and seamless sensor integration, delivering reliable vehicle flow and maximum protection worldwide.
En resumen, la Intelligent Automated Boom Barrier Gate System – Smart Vehicle Parking Management and Traffic Access Control Solution es un sensor...

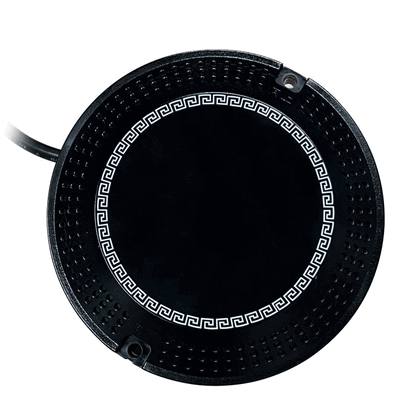

The Baroxon Ba-R02 is a professional 24GHz FMCW millimeter-wave radar specifically designed to prevent barrier gate accidents (anti-smash). Featuring an IP67 waterproof rating and a detection range of up to 6 meters, this is the premier solution for commercial parking and private residential estates worldwide, ensuring superior safety for vehicles and pedestrians alike.
| Material | ABS Plastic | Model Number | Ba-R02 |
| Brand Name | Baroxon | Application | Straight Arm Barrier Gate |
| Input Voltage | DC12V 150mA | Operating Frequency | 24-24.5GHz |
| Modulation Mode | FMCW | Transmit Power | 10-15dBm |
| Detection Range | 1-6 meter. +-0.1 meter | Protection Rating | IP67 |
| Beam Horizontal | < 30° | Beam Vertical | < 17° |
| Operating Temp | -40°C~+85°C | Usage | Outdoor Security |
| Sales Unit | Single item |
| Package Dimensions | 14X12X6 cm |
| Gross Weight | 0.500 kg |
(1.1) The anti-collision radar must be mounted on the barrier gate housing, perpendicular to the traffic lane. Recommended height: 0.6M from the ground. Distance from the boom arm: 15-25CM.
(1.2) Ensure the barrier gate chassis is firmly anchored to prevent vibration during operation.
(1.3) Important: Keep the detection zone clear of obstacles such as traffic cones, manhole covers, or signage (excluding the boom arm itself).
(1.4) Use the included adhesive template for precise drilling on the cabinet body.
Step 1: Detection Range Setting

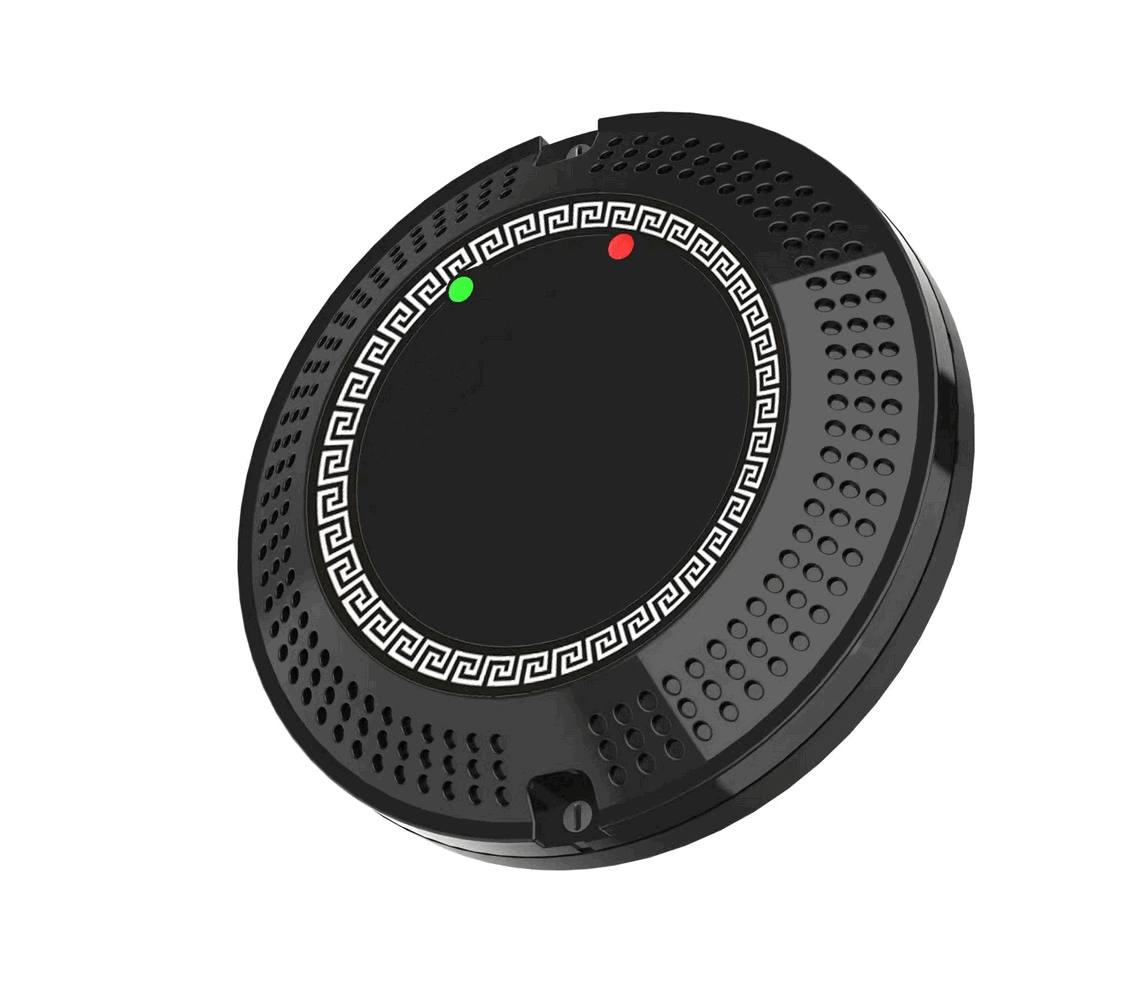

Press and hold the button. Green light ON, red light OFF. Each flash of the red light adds 0.5m (1-6m cycle). Example: For a 4m boom, wait for 5 flashes (2.5m + 1m initial = 3.5m total).
Step 2: Environmental Learning
Press and release the button quickly. Both lights will flash. Wait 20 seconds for background scanning. Ensure no persons or vehicles are in the range during this time. Once completed, the red light will remain ON.
1. Why is 24GHz FMCW technology superior for automated parking applications?
FMCW radar offers exceptional accuracy and environmental stability compared to basic infrared sensors. It performs reliably under high-humidity, heavy rain, and extreme weather conditions worldwide.
2. Is the Ba-R02 compatible with LPR (License Plate Recognition) systems?
Yes, this radar integrates seamlessly with LPR cameras to provide a robust safety buffer, ensuring the boom arm never strikes a vehicle during scanning processes.
3. Is it complicated to adjust the detection range?
Not at all. Configuration is straightforward. Just follow our simple button-holding procedure to adjust the distance according to your specific boom arm length without needing external software.
Affordable Anti-Smash Radar | Smart Parking Gate Sensor | 24GHz Millimeter Wave Radar | Baroxon Global Supplier | Vehicle Detector for Boom Gates
Parking radar sensor system, vehicle detection boom gate, barrier gate anti-collision sensor, smart parking solutions, commercial barrier gate supplier, IP67 radar sensor, residential access security, FMCW radar hardware, automatic gate installation services, Baroxon barrier gate components, vehicle and pedestrian detection radar, parking gate motion sensor, boom barrier accessories, LPR system safety radar, automated parking access control, Shandong parking technology, automatic gate contractor, vehicle detection systems, subdivision entry security, barrier gate automation, parking lot safety sensors, global parking management equipment, intelligent traffic barrier sensors, heavy-duty vehicle safety modules.
El operador admite perfiles de recorrido ajustables desde 0.6s / 0.9s en carriles de alto tráfico hasta 1.5s–6s para brazos largos o pesados, configurables en sitio.
Brazos rectos, plegables (articulados 90°/180°) y de rejilla de 1 a 6 metros, seleccionados según el ancho del carril, la carga de viento y el claro disponible.
Sí. La entrada acepta AC 110–240V 50/60Hz y también versiones DC 24V sin escobillas, por lo que se adapta al estándar eléctrico mexicano (127V/60Hz).
Sí. La tarjeta de control soporta terminales de cámara ANPR/LPR, lectores RFID/UHF de largo alcance, espiras detectoras, códigos QR y software de estacionamiento de terceros mediante contactos secos, Wiegand o red.
Los equipos incluyen desembrague manual y elevación automática de seguridad. Con batería o UPS opcional, la barrera sigue operando en estacionamientos desatendidos.
Diseñado para 3–10 millones de ciclos (MCBF) con MTTR menor a 30 minutos gracias al diseño modular. Garantía estándar de 1 año, soporte técnico de por vida, certificaciones ISO 9001 / ISO 14001 / ISO 45001 y CE.
El MOQ es de 1 unidad para pedidos de muestra, con descuentos por volumen desde 10 unidades. Aceptamos contenedores mixtos con barreras, torniquetes y sensores.
Los precios de fábrica para esta categoría van de USD 100 a USD 5,000 según modelo, longitud de brazo, tipo de motor y configuración de control de acceso. Envíe las características de su proyecto por WhatsApp y le cotizamos en menos de 24 horas.
Los equipos en stock se envían en 3–7 días; la producción personalizada toma 15–25 días. El flete marítimo a puertos mexicanos (Manzanillo, Lázaro Cárdenas, Veracruz) suele tomar 25–35 días; hay flete aéreo para proyectos urgentes.
