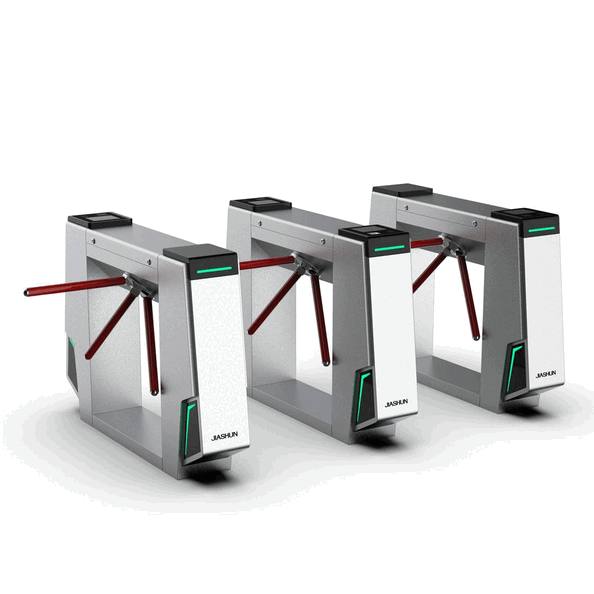

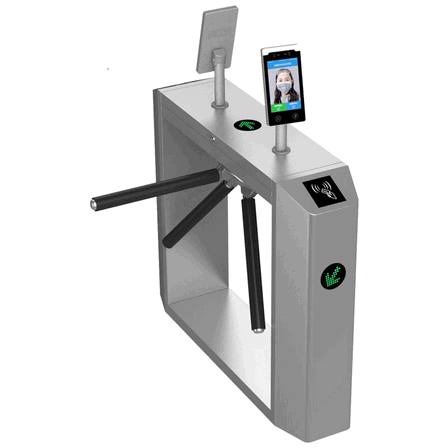

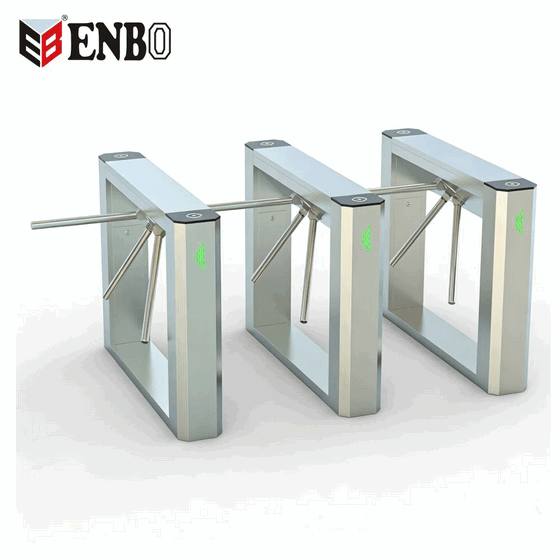

Protect extreme outdoor environments and regulate pedestrian traffic with our IP68 waterproof heavy-duty automatic tripod turnstile gate. Featuring NFC smartphone entry, QR code scanning, and rugged weather-sealed construction, it combines rapid-response rotating arms, high-frequency durability, and precision crowd management, delivering reliable outdoor security worldwide.
En resumen, la IP68 Waterproof Heavy-Duty Automatic Tripod Turnstile Gate with NFC and QR Code Access – Extreme Outdoor Pedestrian Security...
| Protection Level | IP68 (Waterproof & Dustproof) | Barrier Open/Close Time | 0.2 s |
| Barrier Motor | Brushed Motor | Access Control Type | RFID Card. QR Code. IC Card. ESD System (Anti-Static) |
| Turnstile Function | Anti-Pinch. Collision Avoidance. Anti-Tailgating. Counting Function | Operation Direction | 2-Way (Bi-directional) |
| Communication Interface | TCP/IP (Network Integration) | Material | SUS304 Stainless Steel |
| Brand Name | Baroxon | Model Number | Ba-G107 |
| Dimensions | 1200*280*980mm | Power Supply | AC 220 ± 10% V. 50 Hz |
| Drive Motor | DC Motor 24V/100W | Operating Temperature | -15°C to 60°C |
| Relative Humidity | ≤ 90%. non-condensing | Case Color | Metallic silver/customizable |
| Gate Arm Length | 510(mm) | Max Load Capacity | 80Kg |
1. Silent Operation: Runs smoothly without noise and mechanical impact, perfect for high-end office environments in Zona Metropolitana.
2. Emergency Security (Drop Arm): During power outages, the arm drops automatically for emergency evacuation (Automatic Emergency Function).
3. Flexible Control: Can be set to bi-directional or single-directional for efficient Pedestrian Access Control management.
4. All-Weather Durability: IP68 protection rating suitable for both indoor and outdoor applications, resistant to heavy rain and dust.
5. High Compatibility: Standard interface integrates with Facial Recognition, ID/IC, UHF, and Fingerprint readers for Smart Attendance Systems.
6. Universal Integration: Equipped with standard dry contact signal interfaces for all types of access control panels.
7. Visual Guidance: Equipped with LED directional indicators and status lights for clear pedestrian navigation.
8. High Security: Positive action lock prevents multiple entries simultaneously (Anti-Tailgating).
9. Modular Design: Easy assembly for installation in limited routes and quick maintenance services.
| Structural Parameters | |
| Casing Material | 304 Grade Stainless Steel (Anti-Corrosion) |
| Surface Treatment | Brushed Finish (Elegant Aesthetic) |
| Technical Parameters | |
| Lane Width | 600mm |
| Pass Speed | 45--50 persons/minute |
| Open/Close Speed | 0.5sec |
| Rotation Angle | 120 degrees |
| MCBF (Service Life) | 10,000,000 cycles |
| Weight | 30kg |
| Electronic Parameters | |
| Power Supply | 220V/AC. 50/60HZ |
| Rated Power | 60W |
| Input Signal | Dry Contact |
| Drive Motor | Solenoid / DC Motor |
Baroxon Ba-G107 is ideal for high-end applications including Commercial Buildings, MRT/LRT Stations, Airports, Customs, Exhibition Halls, Government Buildings, Financial Institutions, and Clubs across the México.
Watch the smooth operation of Baroxon Ba-G107 Tripod Turnstile with QR Code Reader at a local project site:
| 1. Does Ba-G107 support integration with local ESD systems for factories? |
| Yes, our systems are fully compatible with ESD (Electrostatic Discharge) access control, ideal for electronic manufacturing in Cavite or Laguna. |
| 2. Is the IP68 rating reliable for outdoor use during heavy rain? |
| Absolutely. Baroxon Ba-G107 is built with high-level seals to ensure stable performance during the Mexican rainy season. |
| 3. What happens in the event of a power failure in the building? |
| The gate arm drops automatically (Auto-Drop Arm) to ensure a free passage for safety compliance (Occupational Safety Standards). |
Hot Tags (México Version): Tripod Turnstile México Price | Automatic Turnstile Gate Ciudad de México | ESD Access Control System Guadalajara | RFID Turnstile Gate Supplier | Automatic Entrance Gate Quezon City | Industrial Access Control Solutions
Local México Industry Keywords: Affordable Tripod Turnstile, Mexican Automatic Barrier Gate, Biometric Fingerprint Attendance Ciudad de México, Access Control Supplier Davao, Stainless Steel SUS304 Turnstile, Proximity RFID Gate Cavite, Pedestrian Parking Gate System, Office Door Access Control, Automatic Building Entry Gate, Automated Queue Management, Pedestrian Portal Laguna, Turnstile Price México 2026, Security System Contractor Batangas, Baroxon Ba-Series Gate, QR Code Entry Sensor, México Facial Recognition Access, Semi-Automatic Tripod Gate, Factory Security Solutions, Turnstile Installation Service Makati, MRT Station Entry Gates, Automatic Visitor Counting, Official Baroxon México Distributor, Waterproof IP68 Security Gate, Proximity Card Access Systems, Commercial Building Security Integrator, Industrial Facility Entry Solution, Heavy Duty Turnstile Gate.
Barreras de gran calidad. Funcionan bien en clima cálido. Entrega rápida y servicio postventa ágil. Recomendadas para estacionamientos y control de acceso en fraccionamientos.
Buena calidad de construcción y motor potente. El manual de instalación es útil. Solo un pequeño problema con un control remoto, resuelto por el servicio postventa.
Estas barreras soportan de forma confiable el tráfico vehicular diario intenso. Carcasa metálica robusta y resistente a la intemperie. Satisfechos con la compra.
El operador admite perfiles de recorrido ajustables desde 0.6s / 0.9s en carriles de alto tráfico hasta 1.5s–6s para brazos largos o pesados, configurables en sitio.
Brazos rectos, plegables (articulados 90°/180°) y de rejilla de 1 a 6 metros, seleccionados según el ancho del carril, la carga de viento y el claro disponible.
Sí. La entrada acepta AC 110–240V 50/60Hz y también versiones DC 24V sin escobillas, por lo que se adapta al estándar eléctrico mexicano (127V/60Hz).
Sí. La tarjeta de control soporta terminales de cámara ANPR/LPR, lectores RFID/UHF de largo alcance, espiras detectoras, códigos QR y software de estacionamiento de terceros mediante contactos secos, Wiegand o red.
Los equipos incluyen desembrague manual y elevación automática de seguridad. Con batería o UPS opcional, la barrera sigue operando en estacionamientos desatendidos.
Diseñado para 3–10 millones de ciclos (MCBF) con MTTR menor a 30 minutos gracias al diseño modular. Garantía estándar de 1 año, soporte técnico de por vida, certificaciones ISO 9001 / ISO 14001 / ISO 45001 y CE.
El MOQ es de 1 unidad para pedidos de muestra, con descuentos por volumen desde 10 unidades. Aceptamos contenedores mixtos con barreras, torniquetes y sensores.
Los precios de fábrica para esta categoría van de USD 100 a USD 5,000 según modelo, longitud de brazo, tipo de motor y configuración de control de acceso. Envíe las características de su proyecto por WhatsApp y le cotizamos en menos de 24 horas.
Los equipos en stock se envían en 3–7 días; la producción personalizada toma 15–25 días. El flete marítimo a puertos mexicanos (Manzanillo, Lázaro Cárdenas, Veracruz) suele tomar 25–35 días; hay flete aéreo para proyectos urgentes.
